CAP ALUM 1500UF 20% 100V SNAP

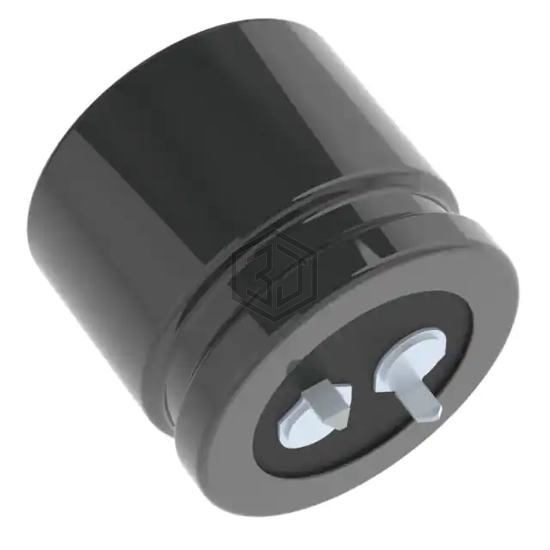

ESMH101VNN152MR25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,541
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.46 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.952 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH101VNN152MR25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH101VSN152MQ30U | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 99% | View |
| 100MXC1500MEFCSN30X25 | Rubycon | CAP ALUM 1500UF 20% 100V SNAP | 89% | View |
| MAL202118152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 63V AXIAL | 71% | View |
| EEU-FC1V152 | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 71% | View |
| 860160680036 | Würth Elektronik | CAP ALUM 1500UF 20% 50V RADIAL | 69% | View |
| B43501A1158M67 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 160V SNAP | 63% | View |
