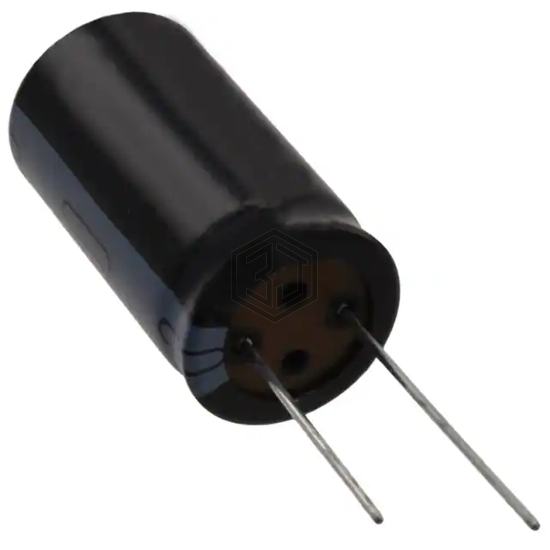

CAP ALUM 12000UF 20% 25V RADIAL
ESMG250ELL123MP40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 12000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,810
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.24 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.4992 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ESMG250ELL123MP40S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLS1E123MELA | Nichicon | CAP ALUM 12000UF 20% 25V SNAP | 93% | View |
| LGY1E123MELB30 | Nichicon | CAP ALUM 12000UF 20% 25V SNAP | 91% | View |
| MAL215626123E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 12000UF 20% 25V SNAP | 88% | View |
| LGU1V123MELB | Nichicon | CAP ALUM 12000UF 20% 35V SNAP | 88% | View |
| LKG1V123MESCBK | Nichicon | CAP ALUM 12000UF 20% 35V SNAP | 78% | View |
| LLS1V123MELB | Nichicon | CAP ALUM 12000UF 20% 35V SNAP | 77% | View |
