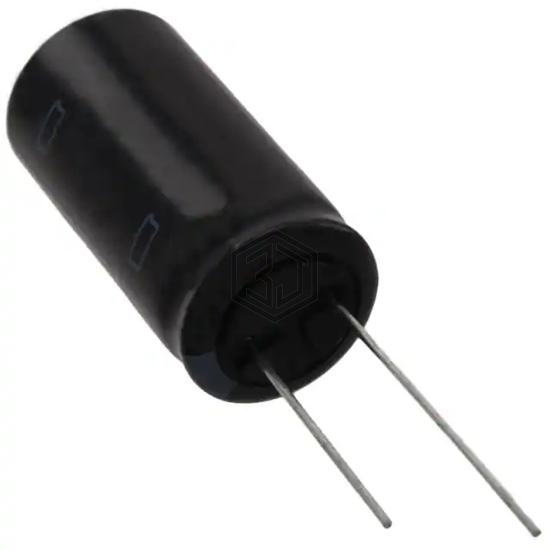

CAP ALUM 15000UF 20% 10V RADIAL
ESMG100ELL153MMP1S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 15000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.3264 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205644153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V SNAP | 97% | View |
| LGU1C153MELA | Nichicon | CAP ALUM 15000UF 20% 16V SNAP | 81% | View |
| LKG1C153MESABK | Nichicon | CAP ALUM 15000UF 20% 16V SNAP | 80% | View |
| 159LBA016M2BF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 15000UF 20% 16V SNAP | 70% | View |
| ALC10C153EB035 | KEMET | CAP ALUM 15000UF 20% 35V SNAP | 65% | View |
| LKS1V153MESB | Nichicon | CAP ALUM 15000UF 20% 35V SNAP | 65% | View |
