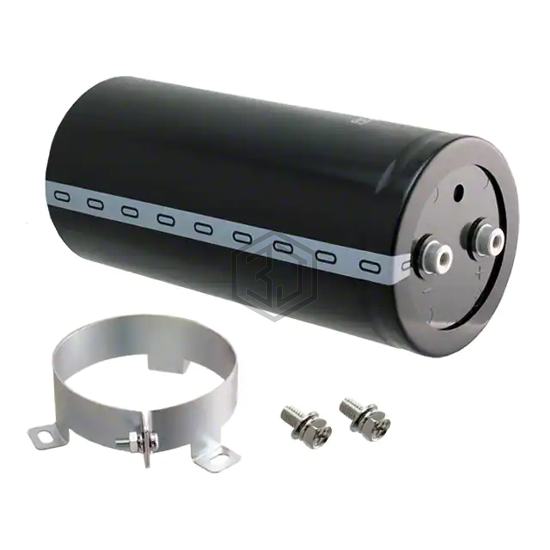

CAP ALUM 2700UF 20% 700V SCREW
ERHB701LGC272MFD5U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2700UF 20% 700V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 700 V, package / case Radial, Can - Screw Terminals.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 700 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.9 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 5.472" (139.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for ERHB701LGC272MFD5U and get a quote within 24 hours.
