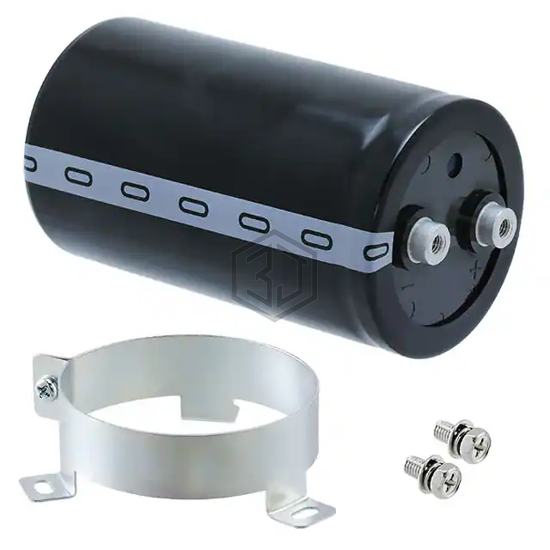

CAP ALUM 4700UF 20% 650V SCREW
ERHA651LGC472MFK0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 650V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 650 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,804
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 650 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 25.76 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 7.638" (194.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA651LGC472MFK0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNX2J472MSEK | Nichicon | CAP ALUM 4700UF 20% 630V SCREW | 94% | View |
| LNUN7472MSEJBB | Nichicon | CAP ALUM 4700UF 20% 525V SCREW | 84% | View |
| LNU2G472MTEH | Nichicon | CAP ALUM 4700UF 20% 400V SCREW | 78% | View |
| DCMC472T450DE2BS | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 450V SCREW | 76% | View |
| LNC2V472MTEG | Nichicon | CAP ALUM 4700UF 20% 350V SCREW | 76% | View |
| B43723A5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 76% | View |
