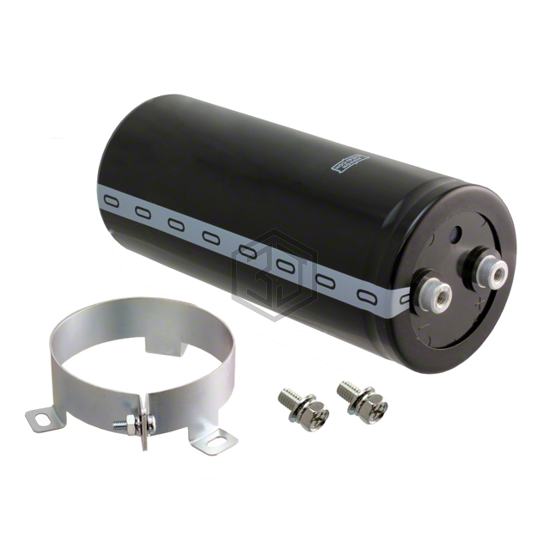

CAP ALUM 2200UF 20% 650V SCREW
ERHA651LGC222MDH0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 650V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 650 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,474
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 650 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.38 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.693" (170.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA651LGC222MDH0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SWAC120222M450B | KYOCERA AVX | SERIES: SWA/ CASE: C12/ CAP: 022 | 88% | View |
| B43705B5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 84% | View |
| MAL210267222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 450V SCREW | 83% | View |
| LNUN7222MSEG | Nichicon | CAP ALUM 2200UF 20% 525V SCREW | 82% | View |
| LNY2W222MSEF | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 77% | View |
| E36D401HPN222MCB7U | United Chemi-Con | CAP ALUM 2200UF 20% 400V SCREW | 56% | View |
