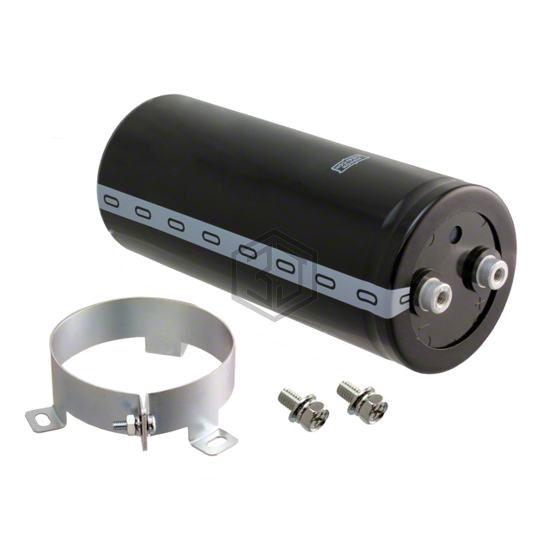

CAP ALUM 1000UF 20% 650V SCREW
ERHA651LGC102MDA0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 650V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 650 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,908
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 650 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.82 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 3.937" (100.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA651LGC102MDA0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210217102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 84% | View |
| MAL210216102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 400V SCREW | 79% | View |
| B43455D5108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 450V SCREW | 74% | View |
| MAL210416102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 400V SCREW | 73% | View |
| MLS102M150EB0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 150V FLATPCK | 70% | View |
| HVMLS102M150EB1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 150V FLATPCK | 70% | View |
