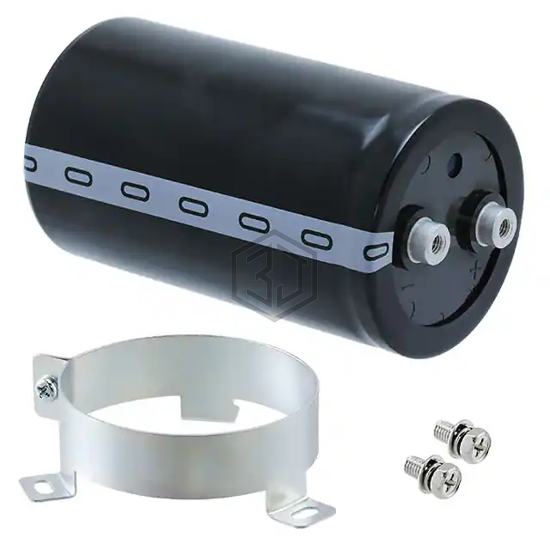

CAP ALUM 5600UF 20% 600V SCREW
ERHA601LGC562MFH0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 600V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 600 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,963
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 600 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.74 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 6.693" (170.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA601LGC562MFH0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250139562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 500V SCREW | 89% | View |
| ALS81C562QM500 | KEMET | CAP ALUM 5600UF 20% 500V SCREW | 88% | View |
| MAL210277562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 450V SCREW | 85% | View |
| MAL250177562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 450V SCREW | 84% | View |
| E36D451CPN562TEM9U | United Chemi-Con | CAP ALUM 5600UF 450V SCREW | 82% | View |
| ALS80H562NP450 | KEMET | CAP ALUM 5600UF 20% 450V SCREW | 81% | View |
