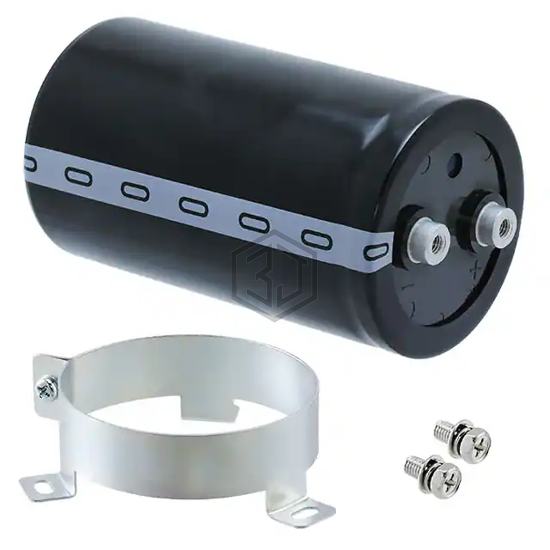

CAP ALUM 3900UF 20% 600V SCREW
ERHA601LGC392MFD0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 600V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 600 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,516
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 600 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 19.88 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 5.118" (130.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA601LGC392MFD0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS70C392NF550 | KEMET | CAP ALUM 3900UF 20% 550V SCREW | 95% | View |
| B43704B7398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 550V SCREW | 93% | View |
| MAL250179392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 500V SCREW | 93% | View |
| LNX2W392MSEH | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 90% | View |
| ERHA501LGC392MDH0U | United Chemi-Con | CAP ALUM 3900UF 20% 500V SCREW | 90% | View |
| LNU2W392MTEG | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 85% | View |
