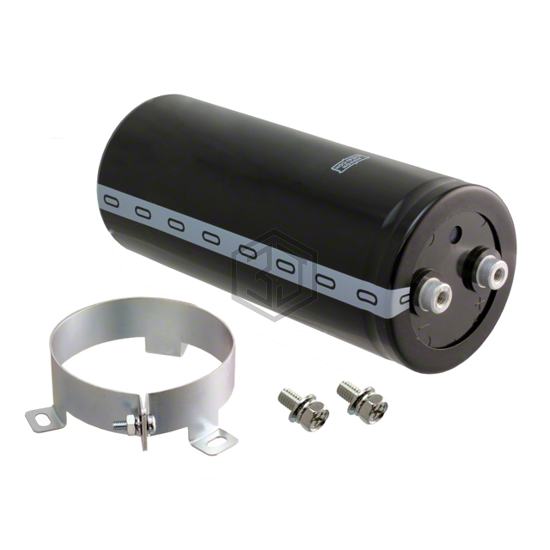

CAP ALUM 1500UF 20% 600V SCREW
ERHA601LGC152MDB0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 600V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 600 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,922
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 600 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.2 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.331" (110.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA601LGC152MDB0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCMC152M550CF2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 550V SCREW | 94% | View |
| CGS152T450X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 450V SCREW | 89% | View |
| MAL250139152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 500V SCREW | 87% | View |
| LNY2G152MSEFBB | Nichicon | CAP ALUM 1500UF 20% 400V SCREW | 87% | View |
| 36DY152F450BF2A | Vishay Sprague | CAP ALUM 1500UF 450V SCREW | 82% | View |
| LNX2H152MSEG | Nichicon | CAP ALUM 1500UF 20% 500V SCREW | 80% | View |
Submit your RFQ for ERHA601LGC152MDB0M and get a quote within 24 hours.
