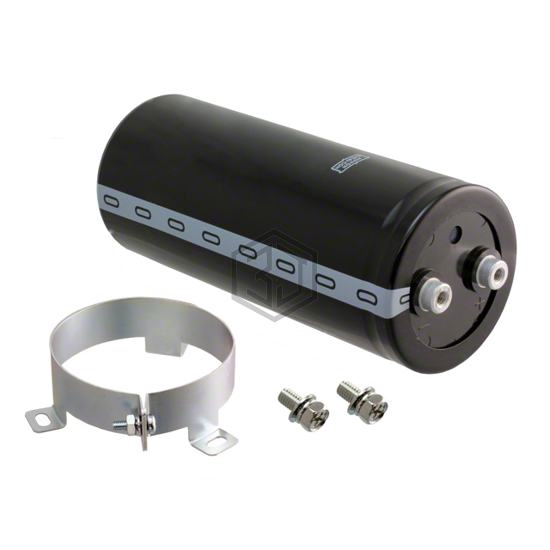

CAP ALUM 2700UF 20% 550V SCREW
ERHA551LGC272MDF0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2700UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,550
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.36 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.906" (150.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA551LGC272MDF0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D5H1CDN272MDE3U | United Chemi-Con | CAP ALUM 2700UF 20% SCREW | 100% | View |
| LNX2J272MSEJBB | Nichicon | CAP ALUM 2700UF 20% 630V SCREW | 95% | View |
| ALS81H272LM500 | KEMET | CAP ALUM 2700UF 20% 500V SCREW | 91% | View |
| MAL250039272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 500V SCREW | 87% | View |
| LQR2G272MSEGBB | Nichicon | CAP ALUM 2700UF 20% 400V SCREW | 87% | View |
| LNY2W272MSEFBN | Nichicon | CAP ALUM 2700UF 20% 450V SCREW | 85% | View |
Submit your RFQ for ERHA551LGC272MDF0M and get a quote within 24 hours.
