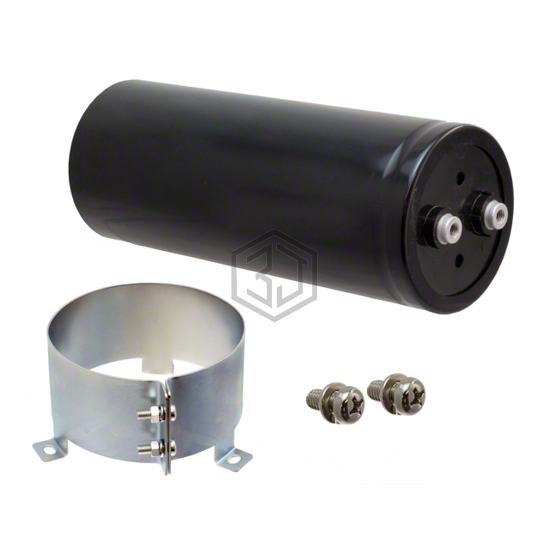

CAP ALUM 10000UF 20% 550V SCREW
ERHA551LGC103MGL0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,155
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 41.16 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 7.874" (200.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA551LGC103MGL0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQR2W103MSEJ | Nichicon | CAP ALUM 10000UF 20% 450V SCREW | 91% | View |
| MAL250139103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 500V SCREW | 91% | View |
| LNX2G103MSEH | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 89% | View |
| B43703A5109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 450V SCREW | 88% | View |
| ALS71H103NT500 | KEMET | CAP ALUM 10000UF 20% 500V SCREW | 81% | View |
| E37F351CPN103MFB7U | United Chemi-Con | CAP ALUM 10000UF 20% 350V SCREW | 79% | View |
Submit your RFQ for ERHA551LGC103MGL0M and get a quote within 24 hours.
