CAP ALUM 6800UF 20% 500V SCREW

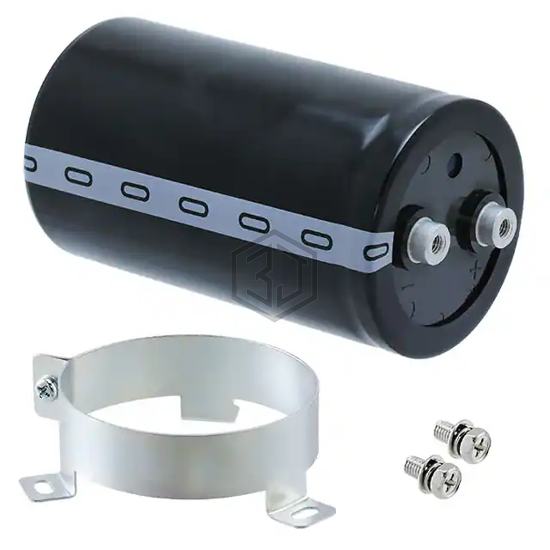

ERHA501LGC682MFF0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,510
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 A @ 120 Hz |
| Ripple Current @ High Frequency | 28 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 5.906" (150.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA501LGC682MFF0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250159682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 500V SCREW | 98% | View |
| E37L501CPN682MFE3U | United Chemi-Con | CAP ALUM 6800UF 20% 500V SCREW | 97% | View |
| B43456A5688M003 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 450V SCREW | 96% | View |
| MAL210287682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 450V SCREW | 94% | View |
| MAL250157682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 450V SCREW | 93% | View |
| MAL250019682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 500V SCREW | 91% | View |
