CAP ALUM 4700UF 20% 500V SCREW

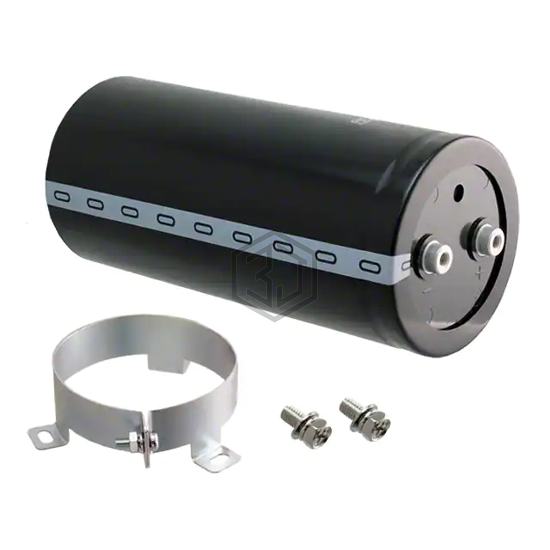

ERHA501LGC472MEF0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,356
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 25.34 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.906" (150.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA501LGC472MEF0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43763A9478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 90% | View |
| LNC2H472MSEJBB | Nichicon | CAP ALUM 4700UF 20% 500V SCREW | 87% | View |
| LNC2H472MTEJ | Nichicon | CAP ALUM 4700UF 20% 500V SCREW | 87% | View |
| B43703B9478M603 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 85% | View |
| LNT2V472MSEHBB | Nichicon | CAP ALUM 4700UF 20% 350V SCREW | 85% | View |
| LNX2V472MSEHBB | Nichicon | CAP ALUM 4700UF 20% 350V SCREW | 69% | View |
