CAP ALUM 3900UF 20% 500V SCREW

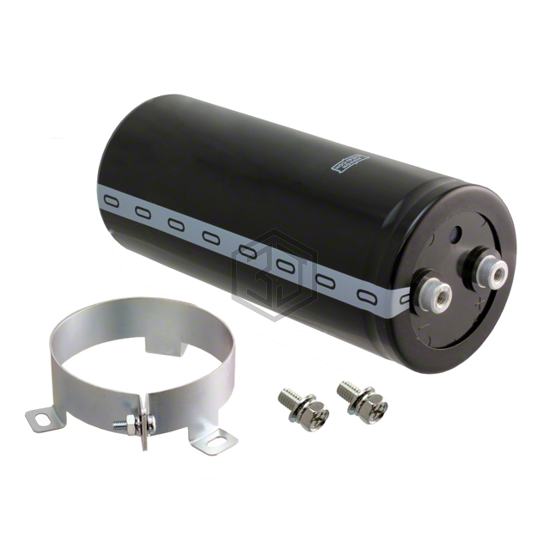

ERHA501LGC392MDH0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,498
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 21.98 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.693" (170.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA501LGC392MDH0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK2H392MSEJ | Nichicon | CAP ALUM 3900UF 20% 500V SCREW | 96% | View |
| LNC2W392MSEGBN | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 92% | View |
| 420LSQ3900M77X106 | Rubycon | CAP ALUM 3900UF 20% 420V SCREW | 89% | View |
| LNU2H392MSEJBB | Nichicon | CAP ALUM 3900UF 20% 500V SCREW | 89% | View |
| DCMC392M400CD5F | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 400V SCREW | 86% | View |
| LQR2V392MSEHBB | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 84% | View |
