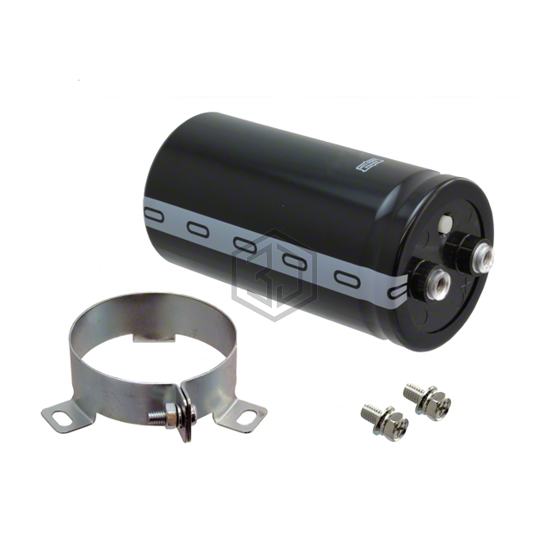

CAP ALUM 1800UF 20% 500V SCREW
ERHA501LGC182MCD0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,463
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.62 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.882" (22.40mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 5.118" (130.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA501LGC182MCD0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D501HLN182MCD0U | United Chemi-Con | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| B43564B6188M3 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 500V SCREW | 98% | View |
| LNU2H182MSEG | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 95% | View |
| B43703A5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 450V SCREW | 92% | View |
| ERHB701LGC182MEC5U | United Chemi-Con | CAP ALUM 1800UF 20% 700V SCREW | 83% | View |
| ERHB5H1LGC182MDA0U | United Chemi-Con | CAP ALUM 1800UF 20% 575V SCREW | 79% | View |
