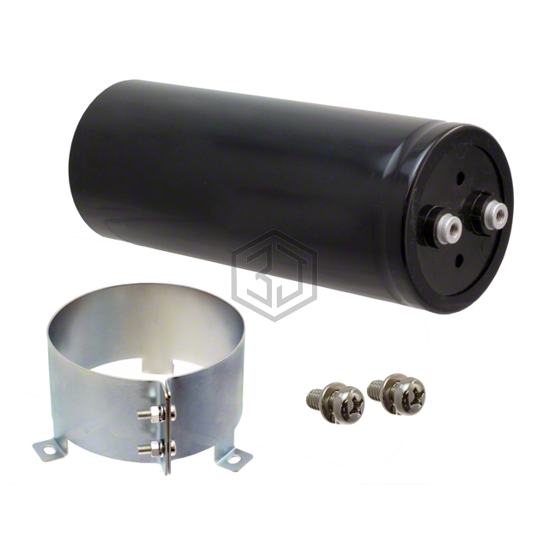

CAP ALUM 15000UF 20% 500V SCREW
ERHA501LGC153MGR0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 15000UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,235
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 55.72 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 10.000" (254.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA501LGC153MGR0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2W153MSEJBN | Nichicon | CAP ALUM 15000UF 20% 450V SCREW | 90% | View |
| 400LSG15000MEFC90X234 | Rubycon | CAP ALUM 15000UF 20% 400V SCREW | 86% | View |
| MAL250074153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 420V SCREW | 77% | View |
| LNY2G153MSEJBB | Nichicon | CAP ALUM 15000UF 20% 400V SCREW | 77% | View |
| DCMX153U350DG2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 350V SCREW | 77% | View |
| MAL250036153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 400V SCREW | 76% | View |
Submit your RFQ for ERHA501LGC153MGR0M and get a quote within 24 hours.
