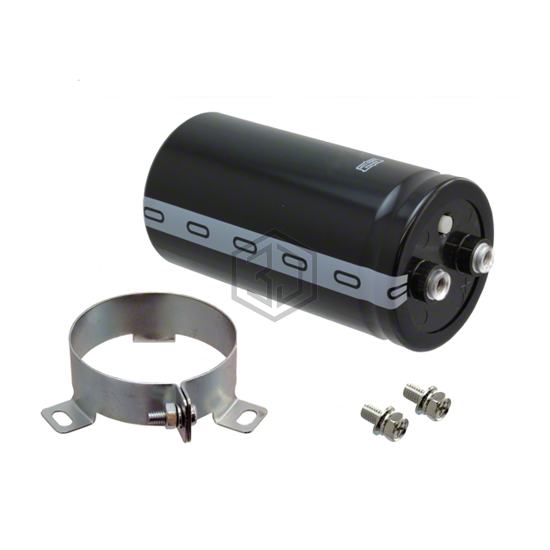

CAP ALUM 1500UF 20% 500V SCREW
ERHA501LGC152MCB5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,166
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.08 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.882" (22.40mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.528" (115.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA501LGC152MCB5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37L501HPN152MCD0U | United Chemi-Con | CAP ALUM 1500UF 20% 500V SCREW | 99% | View |
| E36D451HLC152MEA5U | United Chemi-Con | CAP ALUM 1500UF 20% 450V SCREW | 93% | View |
| HES152G450X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 450V SCREW | 92% | View |
| LNY2W152MSEGBN | Nichicon | CAP ALUM 1500UF 20% 450V SCREW | 92% | View |
| MAL210226152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 400V SCREW | 90% | View |
| LNK2G152MSEFBN | Nichicon | CAP ALUM 1500UF 20% 400V SCREW | 90% | View |
Submit your RFQ for ERHA501LGC152MCB5M and get a quote within 24 hours.
