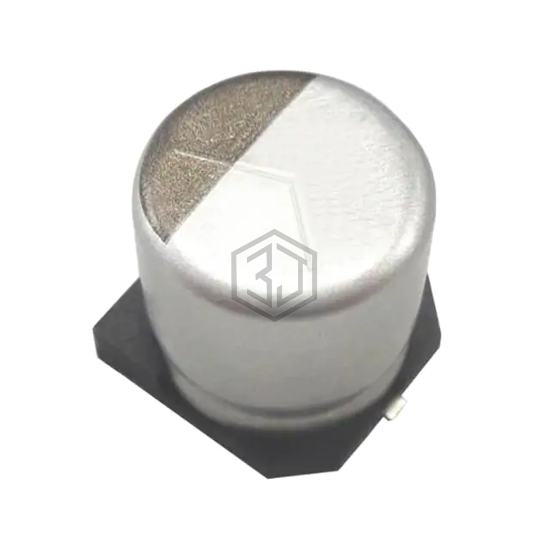

CAP ALUM 560UF 20% 35V SMD
EMZS350ARA561MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY350ARA561MKE0S | United Chemi-Con | CAP ALUM 560UF 20% 35V SMD | 100% | View |
| 35TPV560M10X10.5 | Rubycon | CAP ALUM 560UF 20% 35V SMD | 96% | View |
| EEE-FT1V561GV | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V SMD | 92% | View |
| EEE-FN1V561UP | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V SMD | 92% | View |
| EEE-FT1V561GP | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V SMD | 92% | View |
| AFK567M50P44VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 50V SMD | 62% | View |
Submit your RFQ for EMZS350ARA561MJA0G and get a quote within 24 hours.
