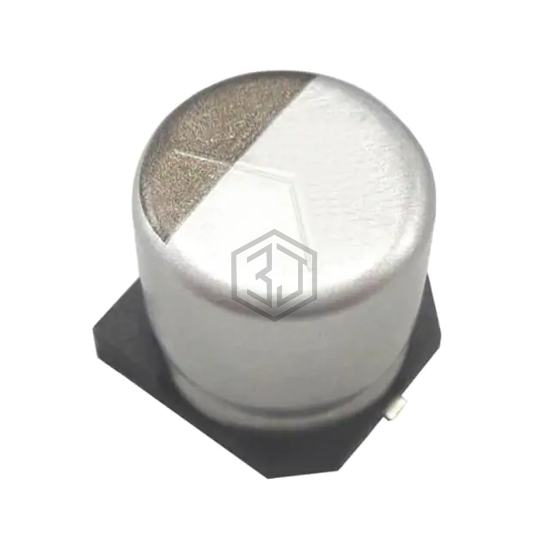

CAP ALUM 470UF 20% 35V SMD
EMZS350ARA471MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,073
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL226099003E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V SMD | 96% | View |
| EEE-FT1E471GV | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 84% | View |
| UCQ1E471MCL1GS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 80% | View |
| AFK477M35H32VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 35V SMD | 78% | View |
| EEE-FK1C471AP | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 69% | View |
| EEE-FK1C471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 69% | View |
