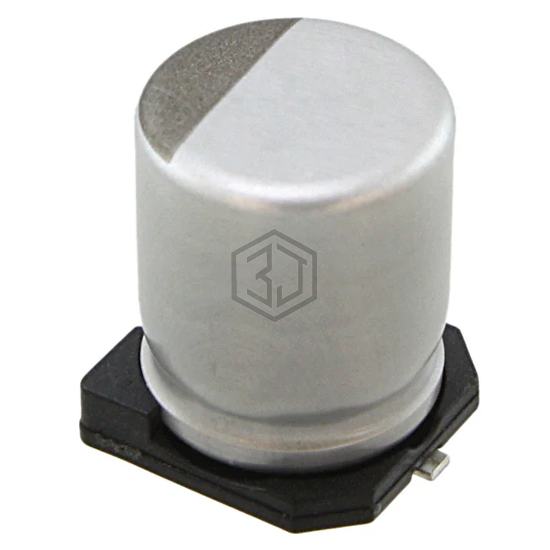

CAP ALUM 1000UF 20% 6.3V SMD
EMZJ6R3ADA102MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,966
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3TKV1000M8X10.5 | Rubycon | CAP ALUM 1000UF 20% 6.3V SMD | 100% | View |
| 10TLV1000M10X10.5 | Rubycon | CAP ALUM 1000UF 20% 10V SMD | 86% | View |
| AEA1010102M010R | KYOCERA AVX | ALUMINUM CAP | 86% | View |
| AEA1010102M016R | KYOCERA AVX | ALUMINUM CAP | 79% | View |
| 10TKV1000M10X10.5 | Rubycon | CAP ALUM 1000UF 20% 10V SMD | 70% | View |
| 865080663020 | Würth Elektronik | CAP ALUM 1000UF 20% 50V SMD | 69% | View |
Submit your RFQ for EMZJ6R3ADA102MHA0G and get a quote within 24 hours.
