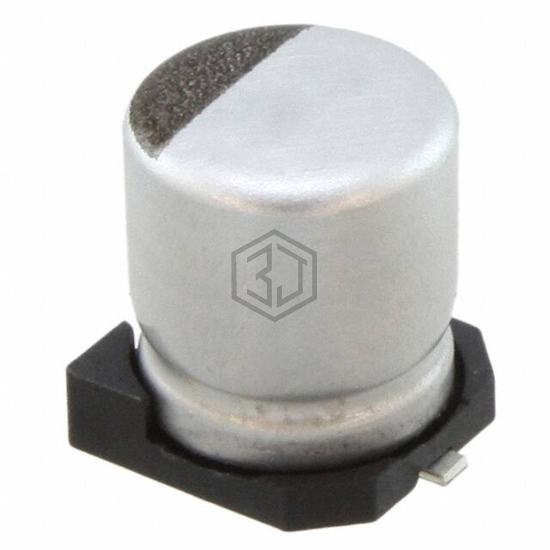

CAP ALUM 22UF 20% 25V SMD
EMZJ250ADA220ME61G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 360mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 96 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35TZV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 84% | View |
| 865060342002 | Würth Elektronik | CAP ALUM 22UF 20% 16V SMD | 75% | View |
| EEV226M016S9DAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 73% | View |
| UWG1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 69% | View |
| MAL215370229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V SMD | 65% | View |
| EMZR500ARA220ME61G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 61% | View |
