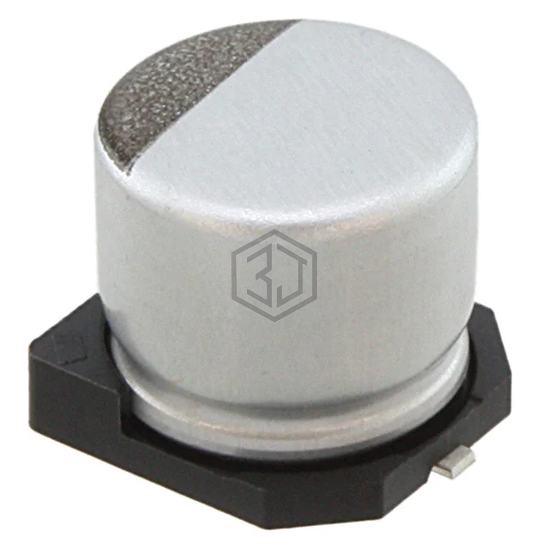

CAP ALUM 100UF 20% 16V SMD
EMZJ160ADA101MF61G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 2,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 260mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.272" (6.90mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 107SMH016ML6 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 16V SMD | 100% | View |
| EEE-FP1C101AP | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V SMD | 88% | View |
| EMZR350ARA101MF61G | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 79% | View |
| EEE-FK1E101AV | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 75% | View |
| EEE-FK1E101AP | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 75% | View |
| EEV107M025A9HAA | KEMET | CAP ALUM 100UF 20% 25V SMD | 73% | View |
Submit your RFQ for EMZJ160ADA101MF61G and get a quote within 24 hours.
