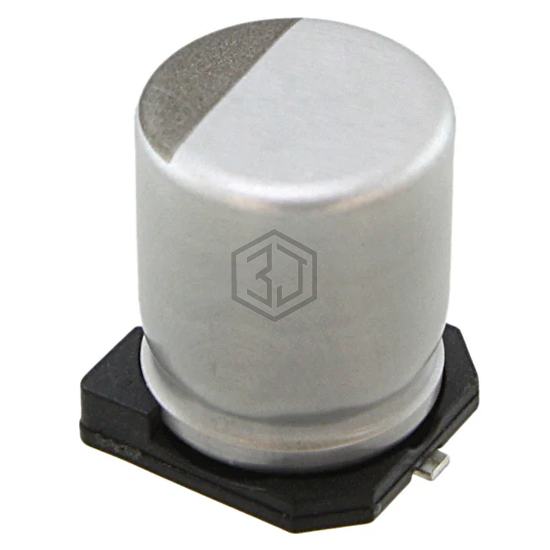

CAP ALUM 680UF 20% 10V SMD
EMZJ100ADA681MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZH681M1ATR-1010S | Surge | CAP ALUM 10V POLAR | 92% | View |
| 10JZV680M8X10.5 | Rubycon | CAP ALUM 680UF 20% 10V SMD | 83% | View |
| EEE-FT1C681AP | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 82% | View |
| UWD1C681MCL1GS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 70% | View |
| MAL215099613E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V SMD | 69% | View |
| UUE1E681MNS1MS | Nichicon | CAP ALUM 680UF 20% 25V SMD | 60% | View |
Submit your RFQ for EMZJ100ADA681MHA0G and get a quote within 24 hours.
