CAP ALUM 1000UF 20% 6.3V SMD

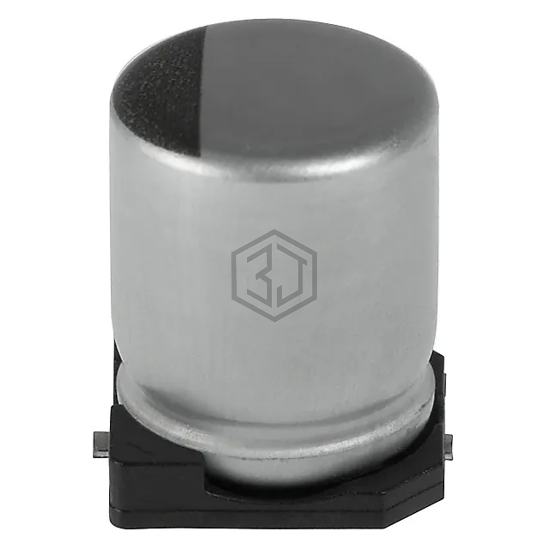

EMZA6R3ADA102MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,969
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEA0810102M006R | KYOCERA AVX | ALUMINUM CAP | 99% | View |
| UUA0J102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 6.3V SMD | 96% | View |
| EEE-FN0J102V | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 96% | View |
| EEE-FK0J102P | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 95% | View |
| 865080257014 | Würth Elektronik | CAP ALUM 1000UF 20% 10V SMD | 77% | View |
| EXV108M010A9PAA | KEMET | CAP ALUM 1000UF 20% 10V SMD | 67% | View |
