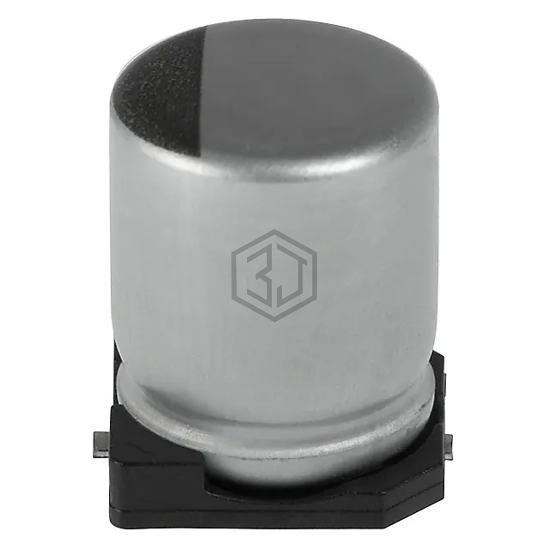

CAP ALUM 100UF 20% 50V SMD
EMZA500ADA101MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,399
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1H101L | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V SMD | 87% | View |
| 50SGV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 50V SMD | 82% | View |
| 50JGV100M10X10.5 | Rubycon | CAP ALUM 100UF 20% 50V SMD | 79% | View |
| MAL215097101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V SMD | 75% | View |
| 16TZV100K6.3X6.1 | Rubycon | CAP ALUM 100UF 10% 16V SMD | 72% | View |
| 16TZV100M6.3X6.1 | Rubycon | CAP ALUM 100UF 20% 16V SMD | 72% | View |
