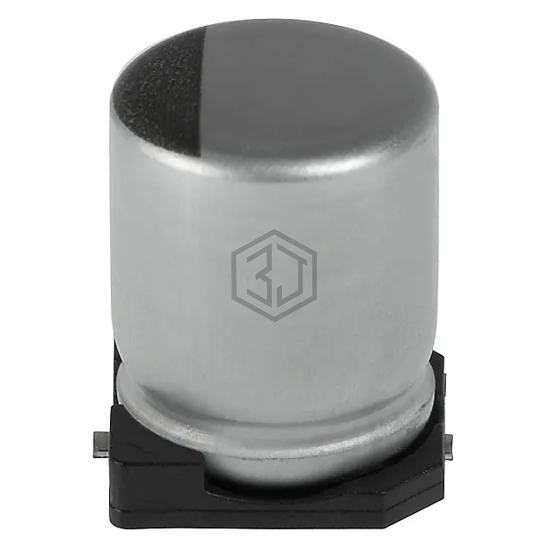

CAP ALUM 330UF 20% 25V SMD
EMZA250ADA331MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK337M16F24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 16V SMD | 80% | View |
| UWD1V331MCL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 79% | View |
| EEE-FK1V271SP | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V SMD | 76% | View |
| EEE-FK1V271SV | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V SMD | 76% | View |
| MAL216099002E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 75% | View |
| EXV337M025S9PAA | KEMET | CAP ALUM 330UF 20% 25V SMD | 75% | View |
