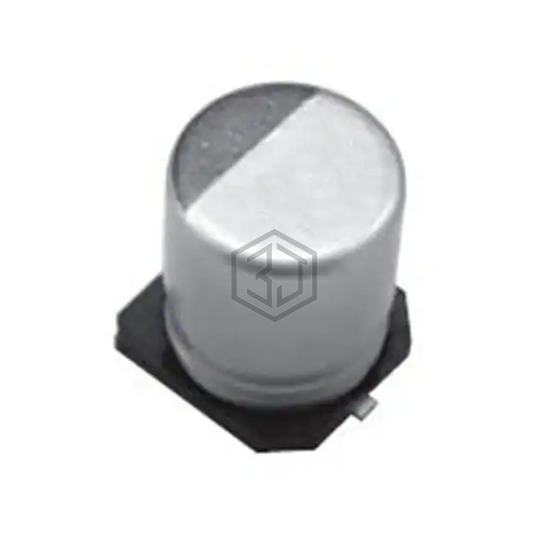

CAP ALUM 390UF 20% 35V SMD
EMXB350ARA391MKG5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,483
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 210mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL226099003E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V SMD | 89% | View |
| EMXB350ARA331MKE0S | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 85% | View |
| VUJ331M1VTR-1313S | SURGE | CAP ALUM 330UF 20% 35V SMD | 85% | View |
| MAL226099105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V SMD | 78% | View |
| VUJ471M1ETR-1313S | SURGE | CAP ALUM 470UF 20% 25V SMD | 72% | View |
| MAL216099601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 71% | View |
Submit your RFQ for EMXB350ARA391MKG5S and get a quote within 24 hours.
