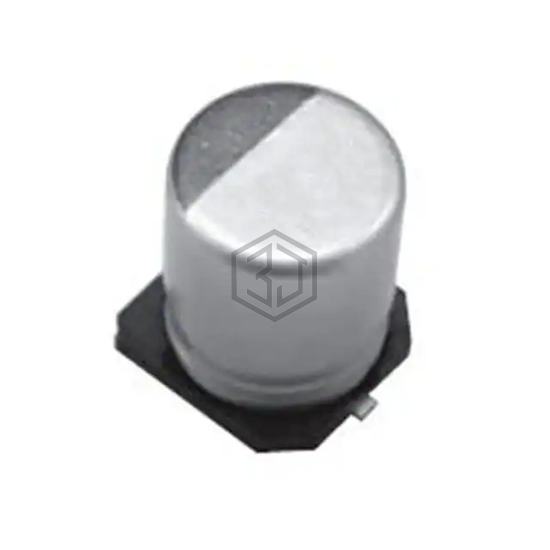

CAP ALUM 1800UF 20% 25V SMD
EMXB250ARA182MLN0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,377
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 58mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 876 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.46 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL226099606E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SMD | 89% | View |
| EMXB250ARA152MMH0S | United Chemi-Con | CAP ALUM 1500UF 20% 25V SMD | 84% | View |
| MAL216099605E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V SMD | 80% | View |
| MAL216099006E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V SMD | 74% | View |
| MAL226099505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V SMD | 65% | View |
| MAL216099505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V SMD | 62% | View |
