CAP ALUM 2200UF 20% 6.3V SMD

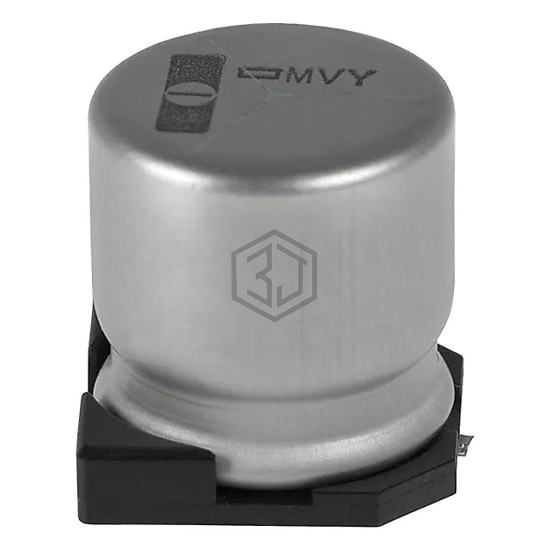

EMVY6R3ARA222MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,238
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 615 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820 mA @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUJ0J222MNJ1MS | Nichicon | CAP ALUM 2200UF 20% 6.3V SMD | 94% | View |
| EEE-FT0J222GV | Panasonic Electronic Components | CAP ALUM 2200UF 20% 6.3V SMD | 84% | View |
| VZT222M0JTR-1010S | Surge | CAP ALUM 6.3V POLAR | 84% | View |
| UUH1A222MNQ6ZD | Nichicon | CAP ALUM 2200UF 20% 10V SMD | 82% | View |
| UUJ1A222MNJ6MS | Nichicon | CAP ALUM 2200UF 20% 10V SMD | 76% | View |
| UUJ1V222MNA1MS | Nichicon | CAP ALUM 2200UF 20% 35V SMD | 53% | View |
Submit your RFQ for EMVY6R3ARA222MKE0S and get a quote within 24 hours.
