CAP ALUM 1000UF 20% 6.3V SMD

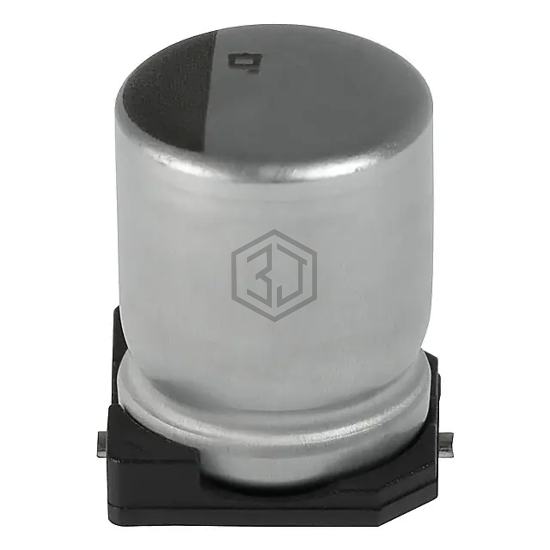

EMVY6R3ADA102MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 108SVL6R3MGW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 6.3V SMD | 92% | View |
| UUD0J102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 6.3V SMD | 89% | View |
| CED0J102MCB08A5F2 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 85% | View |
| AHA108M06G24T-F | Cornell Dubilier Knowles | CAP ALUM 1000UF 20% 6.3V SMD | 81% | View |
| EEE-FT1A102GP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 52% | View |
| EEE-FT1A102AV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 52% | View |
Submit your RFQ for EMVY6R3ADA102MHA0G and get a quote within 24 hours.
