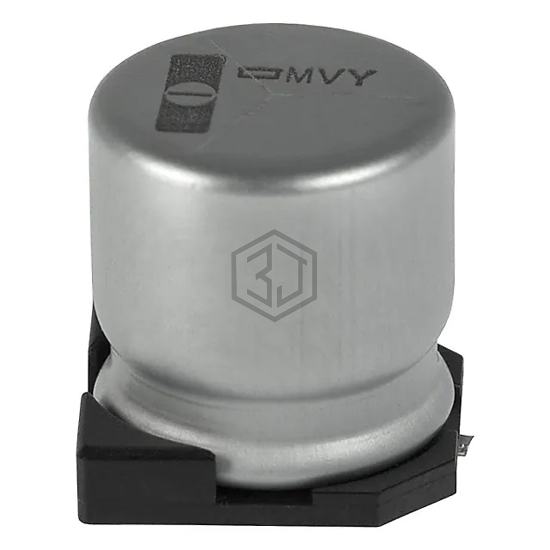

CAP ALUM 68UF 20% 63V SMD
EMVY630ARA680MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 68UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 5,865
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 190 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK2A680AV | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V SMD | 71% | View |
| AEA0810680M050R | KYOCERA AVX | ALUMINUM CAP | 70% | View |
| AFK686M2AH32T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 100V SMD | 68% | View |
| EEV-FK2A680V | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V SMD | 68% | View |
| EEE-FP1C680AL | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 66% | View |
| UCM1V680MCL1GS | Nichicon | CAP ALUM 68UF 20% 35V SMD | 64% | View |
