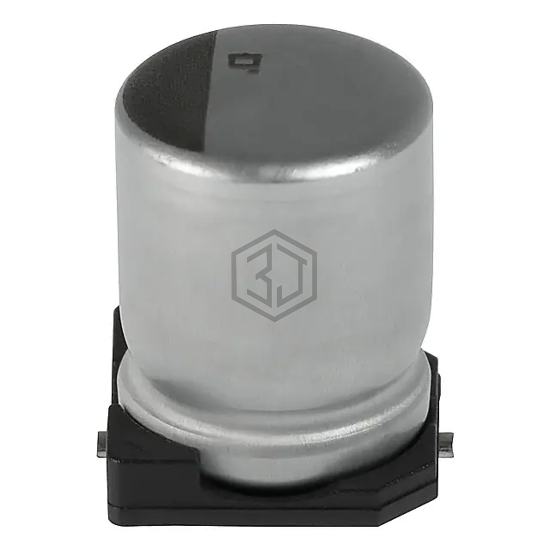

CAP ALUM 100UF 20% 50V SMD
EMVY500ADA101MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | 600 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD1H101MNL1GS | Nichicon | CAP ALUM 100UF 20% 50V SMD | 88% | View |
| UE107M050HFKTA | Aillen | CAP. ALUM 100UF 50V 20% SMD | 84% | View |
| EEE-FN1H101L | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V SMD | 81% | View |
| 35SGV100M6.3X8 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 77% | View |
| EEE-FKV101XAL | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 74% | View |
| EEV107M016A9GAA | KEMET | CAP ALUM 100UF 20% 16V SMD | 68% | View |
Submit your RFQ for EMVY500ADA101MHA0G and get a quote within 24 hours.
