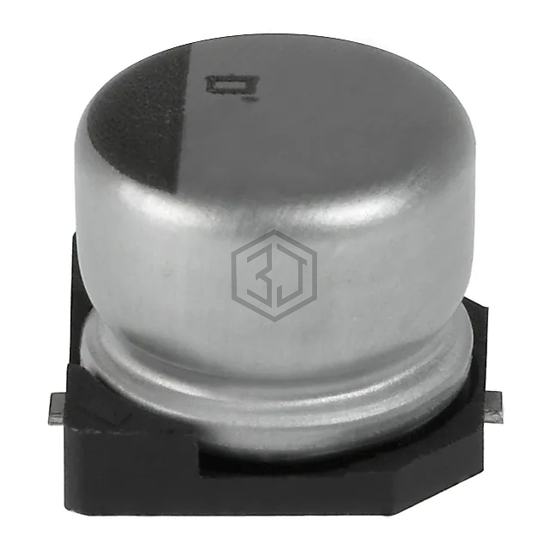

CAP ALUM 10UF 20% 50V SMD
EMVY500ADA100MF55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 343
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 70 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 106SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V SMD | 96% | View |
| CTB1H100MCB0558 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 91% | View |
| CED1H100MCB6354 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| MAL215370109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 35V SMD | 79% | View |
| 865060743002 | Würth Elektronik | CAP ALUM 10UF 20% 63V SMD | 77% | View |
| MAL213968109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 63V SMD | 73% | View |
Submit your RFQ for EMVY500ADA100MF55G and get a quote within 24 hours.
