CAP ALUM 330UF 20% 35V SMD

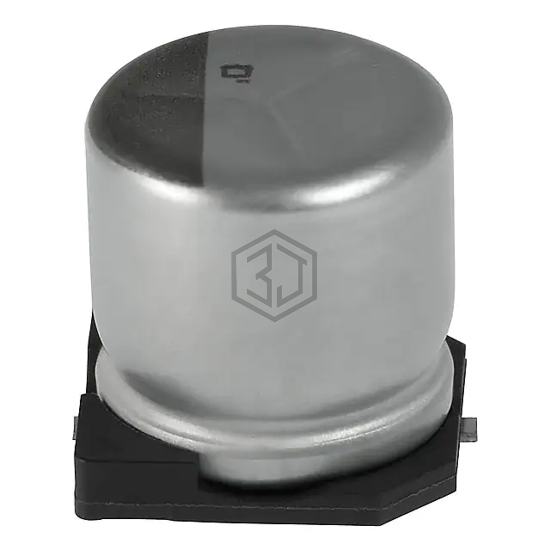

EMVY350ADA331MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,478
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCV1E331MCL1GS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 86% | View |
| AFK337M25F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 25V SMD | 80% | View |
| 25TKV330M8X10.5 | Rubycon | CAP ALUM 330UF 20% 25V SMD | 74% | View |
| UUE1H331MNS1MS | Nichicon | CAP ALUM 330UF 20% 50V SMD | 71% | View |
| UUX0J331MNL1GS | Nichicon | CAP ALUM 330UF 20% 6.3V SMD | 61% | View |
| AFK337M06E16VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 6.3V SMD | 57% | View |
