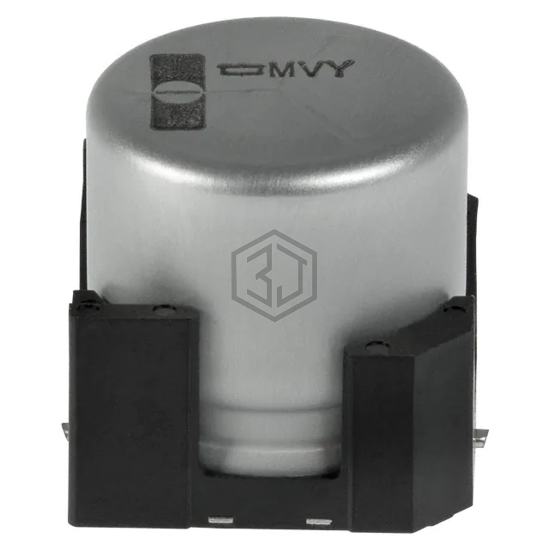

CAP ALUM 1000UF 20% 16V SMD
EMVY160GDA102MLH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 756 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.26 A @ 100 kHz |
| Impedance | 54 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUJ1C102MNQ6ZD | Nichicon | CAP ALUM 1000UF 20% 16V SMD | 82% | View |
| UBC1E102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 25V SMD | 78% | View |
| VZH102M1VTR-1616S | SURGE | CAP ALUM 1000UF 20% 35V SMD | 76% | View |
| 10TPV1000M8X10.5 | Rubycon | CAP ALUM 1000UF 20% 10V SMD | 67% | View |
| 865060563011 | Würth Elektronik | CAP ALUM 1000UF 20% 35V SMD | 60% | View |
| UUD1A102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 51% | View |
Submit your RFQ for EMVY160GDA102MLH0S and get a quote within 24 hours.
