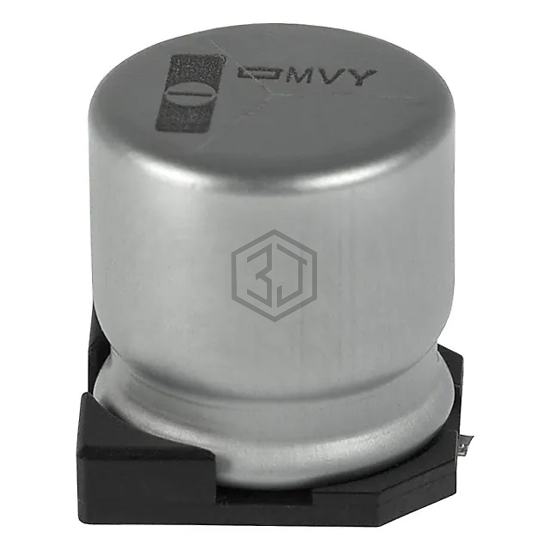

CAP ALUM 1000UF 20% 16V SMD
EMVY160ARA102MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 492 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820 mA @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CEE1A102MCB10A5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 79% | View |
| EEE-FT1C102AV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 78% | View |
| AFK108M10G24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V SMD | 75% | View |
| UUE1A102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 72% | View |
| MAL215097301E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 6.3V SMD | 65% | View |
| EEE-FK0J102GL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 63% | View |
Submit your RFQ for EMVY160ARA102MKE0S and get a quote within 24 hours.
