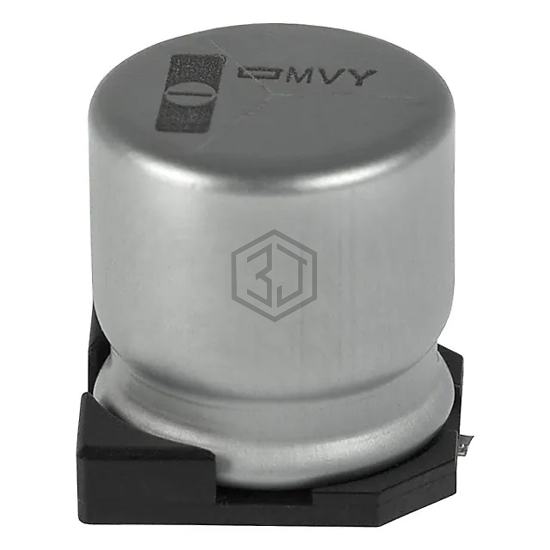

CAP ALUM 68UF 20% 100V SMD
EMVY101ARA680MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 68UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 4,982
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 330 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216099802E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V SMD | 77% | View |
| EEV-FK1K680Q | Panasonic Electronic Components | CAP ALUM 68UF 20% 80V SMD | 76% | View |
| AFK686M80H32VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 80V SMD | 72% | View |
| EEE-FN1J680P | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V SMD | 69% | View |
| EEE-FK1C680V | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 64% | View |
| EEE-FK1V680XV | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 64% | View |
Submit your RFQ for EMVY101ARA680MKE0S and get a quote within 24 hours.
