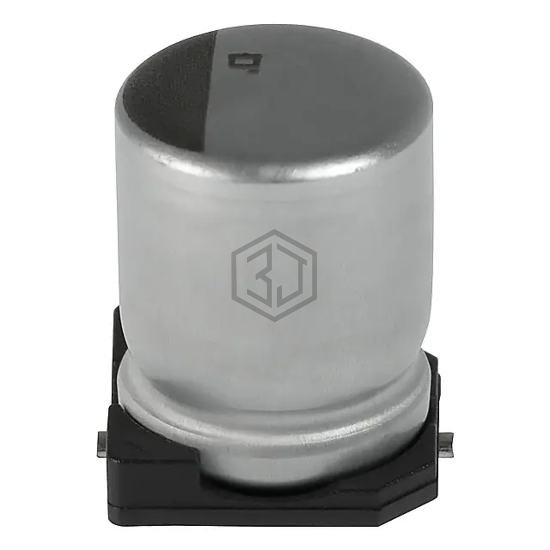

CAP ALUM 330UF 20% 10V SMD
EMVY100ADA331MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,025
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEF1010331M010R | KYOCERA AVX | CAP ALUM 10V POLAR | 94% | View |
| AHA337M06F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 6.3V SMD | 82% | View |
| EEE-FTC331XAV | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 66% | View |
| 25JZV330M8X10.5 | Rubycon | CAP ALUM 330UF 20% 25V SMD | 58% | View |
| EEE-FK1E331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 57% | View |
| MAL215099112E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V SMD | 52% | View |
