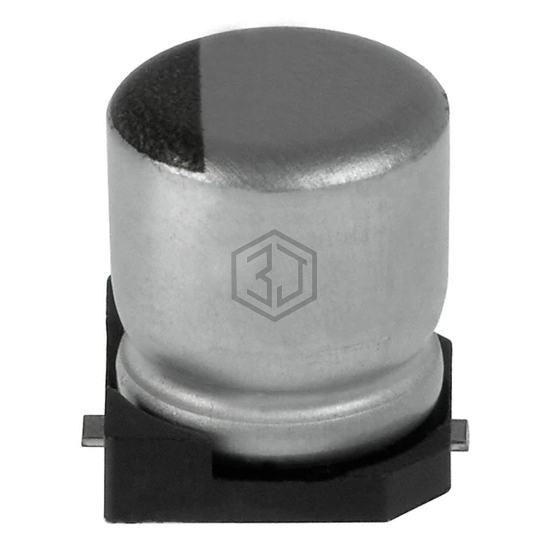

CAP ALUM 100UF 20% 6.3V SMD
EMVL6R3ADA101MF60G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 64.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VES101M0JTR-0605S | Surge | CAP ALUM 6.3V POLAR | 93% | View |
| AHA107M06C12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 6.3V SMD | 89% | View |
| VEJ101M0JTR-0606S | Surge | CAP ALUM 6.3V POLAR | 87% | View |
| VEU101M0JTR-0606S | Surge | CAP ALUM 6.3V POLAR | 87% | View |
| UWZ1A101MCL1GS | Nichicon | CAP ALUM 100UF 20% 10V SMD | 78% | View |
| VES101M1ATR-0605S | Surge | CAP ALUM 10V POLAR | 76% | View |
