CAP ALUM 3.3UF 20% 50V SMD

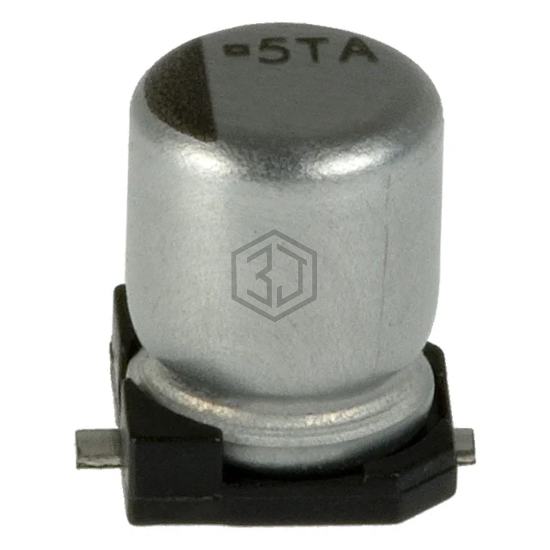

EMVK500ADA3R3MD55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3.3UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,697
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EMVK500ADA3R3MD55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVE500ADA3R3MD55G | United Chemi-Con | CAP ALUM 3.3UF 20% 50V SMD | 98% | View |
| UUD1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 98% | View |
| EEE-HC1H3R3R | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 50V SMD | 96% | View |
| MAL215371338E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 50V SMD | 95% | View |
| AVES335M50B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 3.3UF 20% 50V SMD | 95% | View |
| EMVE630ADA3R3ME55G | United Chemi-Con | CAP ALUM 3.3UF 20% 63V SMD | 84% | View |
Submit your RFQ for EMVK500ADA3R3MD55G and get a quote within 24 hours.
