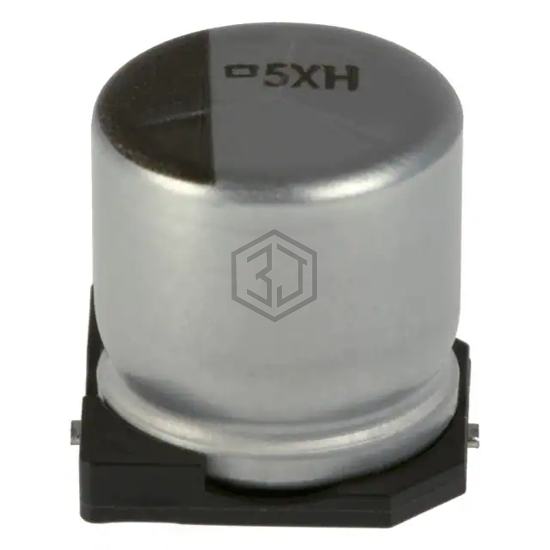

CAP ALUM 47UF 20% 80V SMD
EMVH800ADA470MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 3,245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 550mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 106.95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH250ADA470MH63G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 77% | View |
| MAL216099801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 73% | View |
| EDT476M016S9HAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 65% | View |
| 25THV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 25V SMD | 64% | View |
| EEE-TG1E470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 64% | View |
| EMHK350ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 59% | View |
