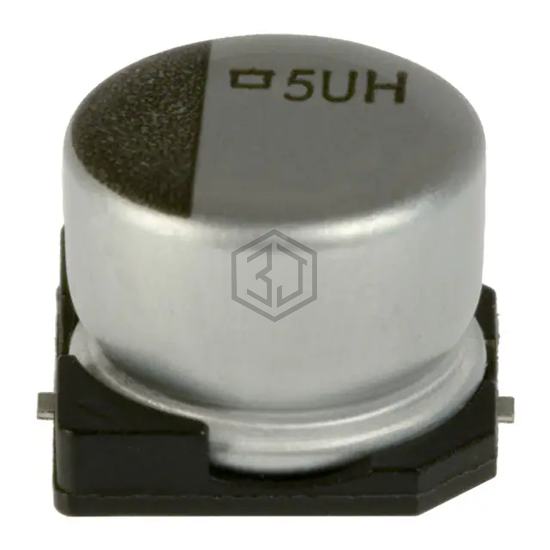

CAP ALUM 47UF 20% 63V SMD
EMVH630ADA470MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 7,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 700mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 93 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TG1J470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V SMD | 89% | View |
| EMHL160ARA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 16V SMD | 74% | View |
| EDT476M050S9MAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 70% | View |
| EMVH500ADA470MHA0G | United Chemi-Con | CAP ALUM 47UF 20% 50V SMD | 70% | View |
| EDT476M050A9MAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 70% | View |
| 35TXV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 67% | View |
Submit your RFQ for EMVH630ADA470MHA0G and get a quote within 24 hours.
