CAP ALUM 1000UF 20% 16V SMD

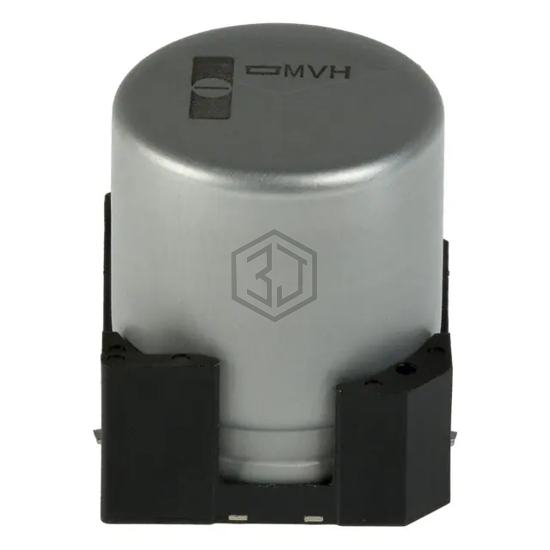

EMVH160GRA102MMH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,267
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-TG1C102M | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 98% | View |
| MAL214099514E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 95% | View |
| EMHS160ARA102MJA0G | Chemi-Con | CAP ALUM 16V POLAR | 79% | View |
| EMVH250ARA102MMN0S | Chemi-Con | CAP ALUM 25V POLAR | 74% | View |
| MAL214699814E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V SMD | 72% | View |
| MAL224699008E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V SMD | 70% | View |
