CAP ALUM 68UF 20% 100V SMD

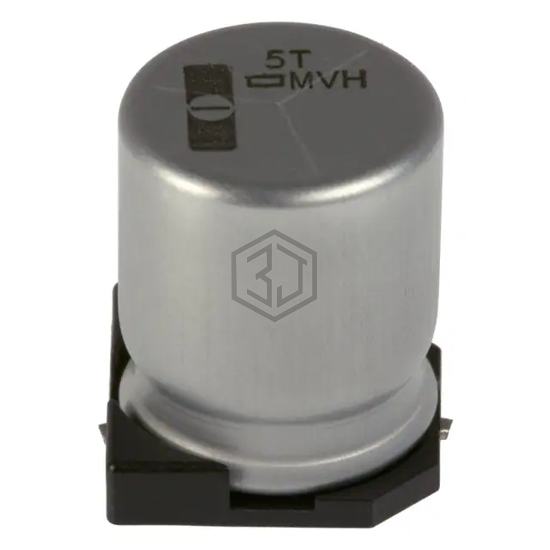

EMVH101ARA680MKG5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 68UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 6,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 260mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214699905E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V SMD | 90% | View |
| MAL216099701E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 80V SMD | 81% | View |
| MAL216099802E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V SMD | 77% | View |
| MAL214097802E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V SMD | 66% | View |
| MAL214699102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 50V SMD | 65% | View |
| MAL214097101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 50V SMD | 53% | View |
Submit your RFQ for EMVH101ARA680MKG5S and get a quote within 24 hours.
