CAP ALUM 4700UF 20% 10V SMD

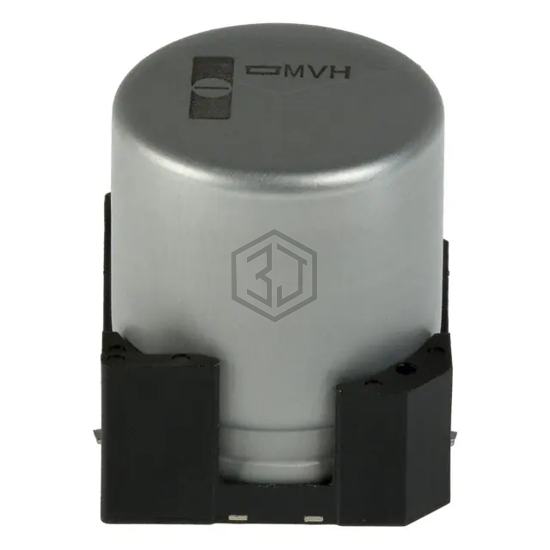

EMVH100GDA472MMN0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 58mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.3175 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214099416E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V SMD | 94% | View |
| EEV-TG1A472M | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V SMD | 85% | View |
| MAL224699511E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V SMD | 81% | View |
| MAL214699511E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V SMD | 81% | View |
| MAL214699509E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V SMD | 74% | View |
| MAL224699509E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V SMD | 74% | View |
