CAP ALUM 2200UF 20% 10V SMD

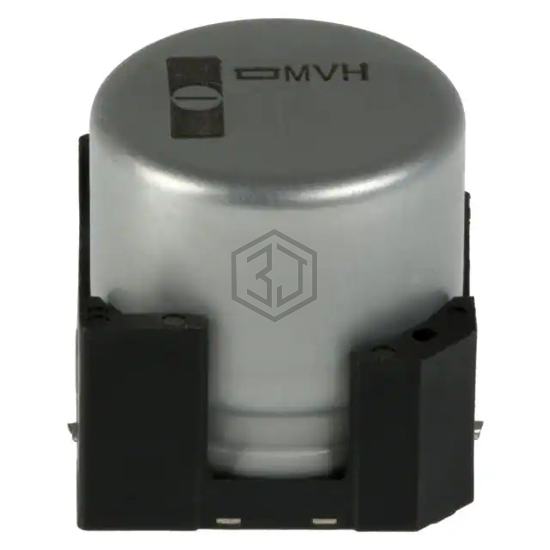

EMVH100GDA222MLH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 7,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1A222AM | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V SMD | 95% | View |
| VUK222M1ATR-1816S | Surge | CAP ALUM 10V POLAR | 90% | View |
| EMHS160ARA202MKG5S | United Chemi-Con | CAP ALUM 2000UF 20% 16V SMD | 77% | View |
| EMHS160GRA202MKG5S | United Chemi-Con | CAP ALUM 2000UF 20% 16V SMD | 77% | View |
| EMVH160GDA222MMH0S | United Chemi-Con | CAP ALUM 2200UF 20% 16V SMD | 77% | View |
| MAL214699608E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SMD | 61% | View |
