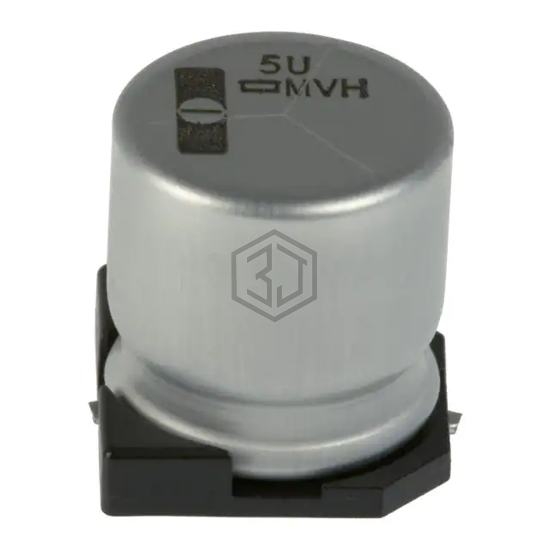

CAP ALUM 1000UF 20% 10V SMD
EMVH100ARA102MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 140mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUE1A102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 82% | View |
| MAL226099503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 80% | View |
| EEE-TKC102UAQ | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 77% | View |
| MAL226099107E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 61% | View |
| EMXB250ARA102MLH0S | United Chemi-Con | CAP ALUM 1000UF 20% 25V SMD | 60% | View |
| UUE1C102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 16V SMD | 54% | View |
Submit your RFQ for EMVH100ARA102MKE0S and get a quote within 24 hours.
