CAP ALUM 330UF 20% 10V SMD

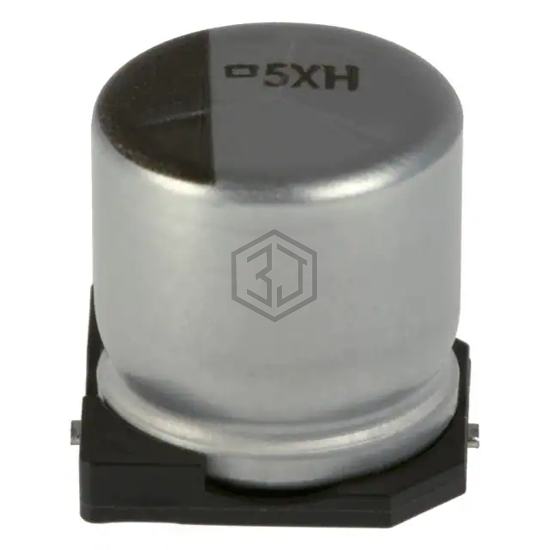

EMVH100ADA331MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 275.28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 296 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH100ARA331MJA0G | Chemi-Con | CAP ALUM 330UF 20% 10V SMD | 100% | View |
| EMHJ100ADA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 10V SMD | 85% | View |
| EMVH250ADA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 79% | View |
| UUE1A331MNS1GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 71% | View |
| MAL214099814E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 58% | View |
| EMVH500ARA331MKG5S | United Chemi-Con | CAP ALUM 330UF 20% 50V SMD | 53% | View |
Submit your RFQ for EMVH100ADA331MJA0G and get a quote within 24 hours.
