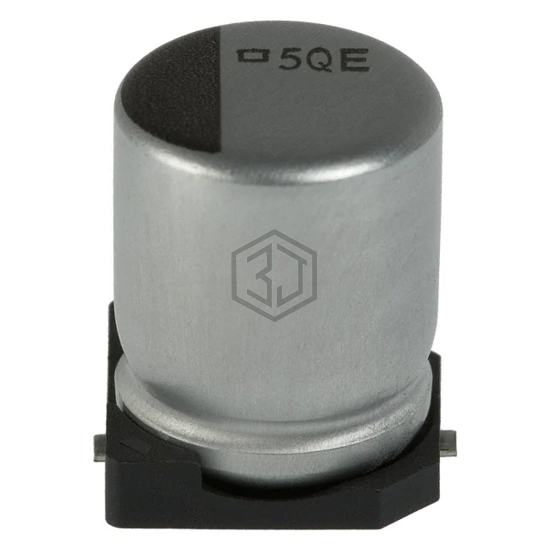

CAP ALUM 330UF 20% 6.3V SMD
EMVE6R3ADA331MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,401
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEU331M0JTR-0810S | Surge | CAP ALUM 6.3V POLAR | 77% | View |
| VEH331M1ATR-0810S | Surge | CAP ALUM 10V POLAR | 74% | View |
| VEJ331M1CTR-0810S | Surge | CAP ALUM 16V POLAR | 71% | View |
| EEE-FNA331XUP | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 66% | View |
| EMHL350ARA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 60% | View |
| MAL215099816E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 51% | View |
